AT6020 Anhydrous Ammonia Fertilizer Applicator
An anhydrous ammonia applicator built for high-rate, high-acreage use! The AT6020 commercial class fertilizer applicator features a heavy-duty frame and toolbar design that will ensure you get the job done during the narrow application window. The AT6020 fertilizer applicator features toolbar widths from 62.5' to 42' with 20" or 30" row spacing, depending on model.
AT6020 NH3 Applicator In Field Row Unit Closeup
AT6020 NH3 Applicator In Field Rear Closeup
AT6020 NH3 Applicator In Field Front View
AT6020 NH3 Applicator Frame Flex
AT6020 Fertilizer Applicator with MaxPac
AT6020 Anhydrous Ammonia Applicator Unfolded
AT6020 NH3 Applicator In Field
AT6020 Anhydrous Ammonia Applicator In Field Rear
Frame
Toolbar
- Available in 62.5', 60', 57.5', 47.5' and 45' working widths on 30" or 20" spacing, depending on model.
- Heavy-duty 6"x6" mainframe features a constant level design to maintain even depth and precise application over uneven terrain.
- 54" of toolbar rank provides superior residue flow
- Wing flex from 15° up and 9° down on the primary wing and 6° up and 9° down on the secondary wing to follow ground contours.
- Single-point, manual-adjust depth control with turnbuckle located at the tongue for quick and convenient adjustment.
Undercarriage
- Standard dual 385/65 R22.5 oscillating truck tires on the main frame:
- Optional dual 320/95 R38 R-1 new tractor tires available on the main frame.
- 295/75 R22.5 truck tires on the inner gauge wheels and 20.5-8x10 tires on the outer gauge wheels.
- Included water tank and storage compartment combination for quick access to clean water and operator's manual.
- Transport chain, lighting kit and storage jack for safer transport and parking.
Injection
Coulters
- The lead Super 1200 coulters feature 4-bolt hubs and 20" fluted blades to clear a path for the shank and slice through residue:
- Coulters feature 1,200 lbs. of downforce and 30° of swivel.
- 1 1/4" edgebent shanks feature SCS (spring cushion shank) twin-spring mounts for reliable and consistent working depth.
- Standard 3/4" wide mole knives feature a 3/8" tube for applying NH3.
- Other knives optional.
Sealers
- Trailing DiscCover sealers feature two notched blades that are angled to fill and seal the slot, preventing fertilizer loss.
- Disc sealer arms operate independently from each other for continuous soil contact.
- 17" of overall travel and 9" of vertical travel from working depth allows the sealers to climb over obstacles.
- Flat-face, zero-maintenance hub with a 6-bolt design and sealed bearings.
- Optional down pressure springs can be added for tough soils.
Distribution
Plumbing & Cooler
- 2-section plumbing with John Blue Impellicones and Raven shutoff valves for precise fertilizer control.
- Ensures even distribution across the toolbar and reduces fertilizer loss during shutoff.
- Raven ISOBUS rate controller allows the operator to utilize the virtual terminal monitor in the tractor cab.

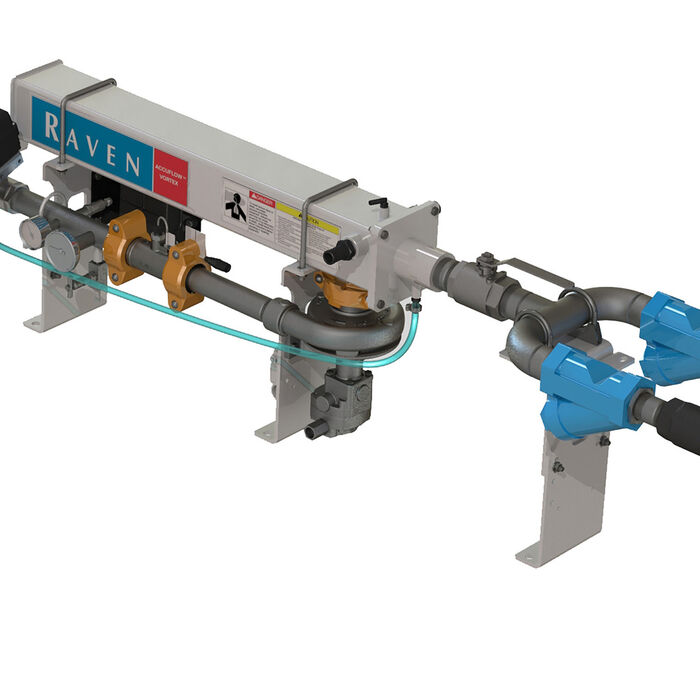

- 50 gallon-per-minute Raven Vortex cooler with 1.5" single fast valve.
Nurse Tank Connection

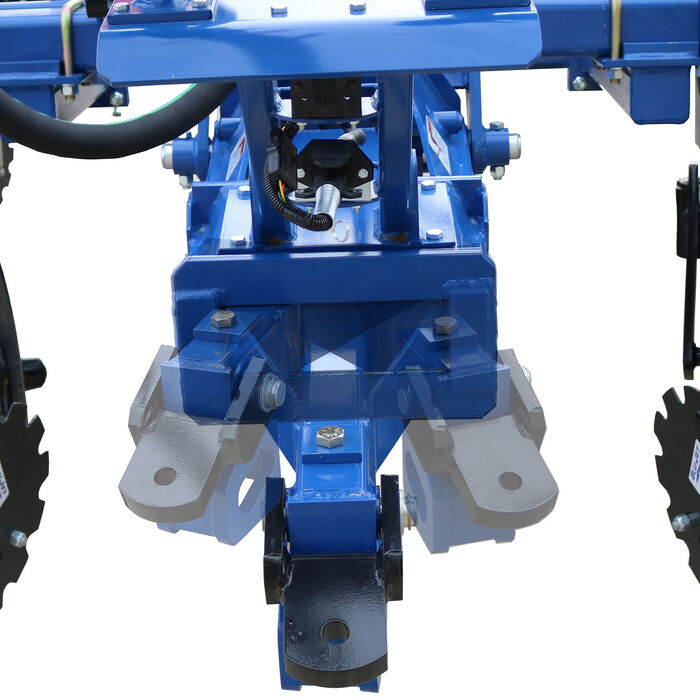

- Tool-free adjustable rear nurse tank hitch features a telescoping design for easy nurse tank hookup:
- This unique design allows the operator to telescope the tongue in so when the operator pulls away it automatically locks. No need to back the applicator up to lock the hitch and then pull away.
- Single SuperShooter III nurse tank connection with 1.25" plumbing features a splash guard and quick disconnect for safe and easy operation.
Options
Distribution Options
- 3-, 4- or 5-section John Blue Impellicones for increased application consistency and reduced anhydrous ammonia waste:
- Also available are 2-, 3-, 4- or 5-section Continental A360 manifolds to meet individual grower preferences.
- High-volume Raven Vortex cooler with PWM pump increases the application rate to up to 80 gallons per minute.
- Single Continental cooler with 46 gallon per minute application rate and 1.5" single fast valve:
- Dual Continental cooler option is available to make a dual-cooler distribution system.
- Dual 1.5" valves for precise control
- Both the single fast valve and dual valve option are available with a low-volume valve that reduces output to 30 gallons per minute.
Nurse Tank Connection Options
- Dual nurse tank hitch add-on kit adds two hitches to the standard center single hitch:
- This allows the operator to pull two nurse tanks in the field and one nurse tank with the center hitch during road transport.
- Double SuperShooter III nurse tank connection systems with 1.25" plumbing for tending multiple nurse tanks.
Specifications
Model | AT6020 | |
19 Row 30" | 25 Row 30" | |
Approx. Weight | 20,880 lbs | 23,950 lbs |
Approx. Tongue Weight | 1,850 lbs | 2,110 lbs |
Transport Width | 17'4" | 17'4" |
Transport Height | 13'6" | 13'6" |
Transport Length | 27'8" | 27'8" |
Hitch to Center of Axle (Tires) | 18' | 18' |
Main Frame Gauge Wheel | Dual Oscillating 385/65 R22.5 Tires | |
Wing Gauge Wheel | Single 295/75 R22.5 Tires | |
Outer Wing Gauge Wheel | Single 20.5-8x10 Tires | |
Hitch | CAT 4 | |
Toolbar Rank | 54" | |
Main Frame | 6" x 6" | |
Main Frame Tubing Thickness | 3/8" | |
Wing Tubing Thickness | 3/8" | |
Primary Wing Flex | 15° Up/9° Down | |
Secondary Wing Flex | 6° Up/9° Down | |
Minimum HP Requirements* | 380+ HP | 500+ HP |
*20 - 25 Recommended Horsepower Per Row |
