Pivot Track Closers and Trench Closers

The most versatile and effective pivot track closers on the market are easy-to-use and won't break the bank!  Plus, the TrackMaster II pivot irrigation track closer and TrenchMaster drainage tile trench closers are field proven with more than 25 years of experience.  There are no better tools for eliminating tire ruts left behind by your center pivot irrigation system or drainage tile operation.  The standard guide cone, adjustable width discs and variety of bolt-on options make the Blu-Jet lineup of track closers the most effective and versatile tool available today!

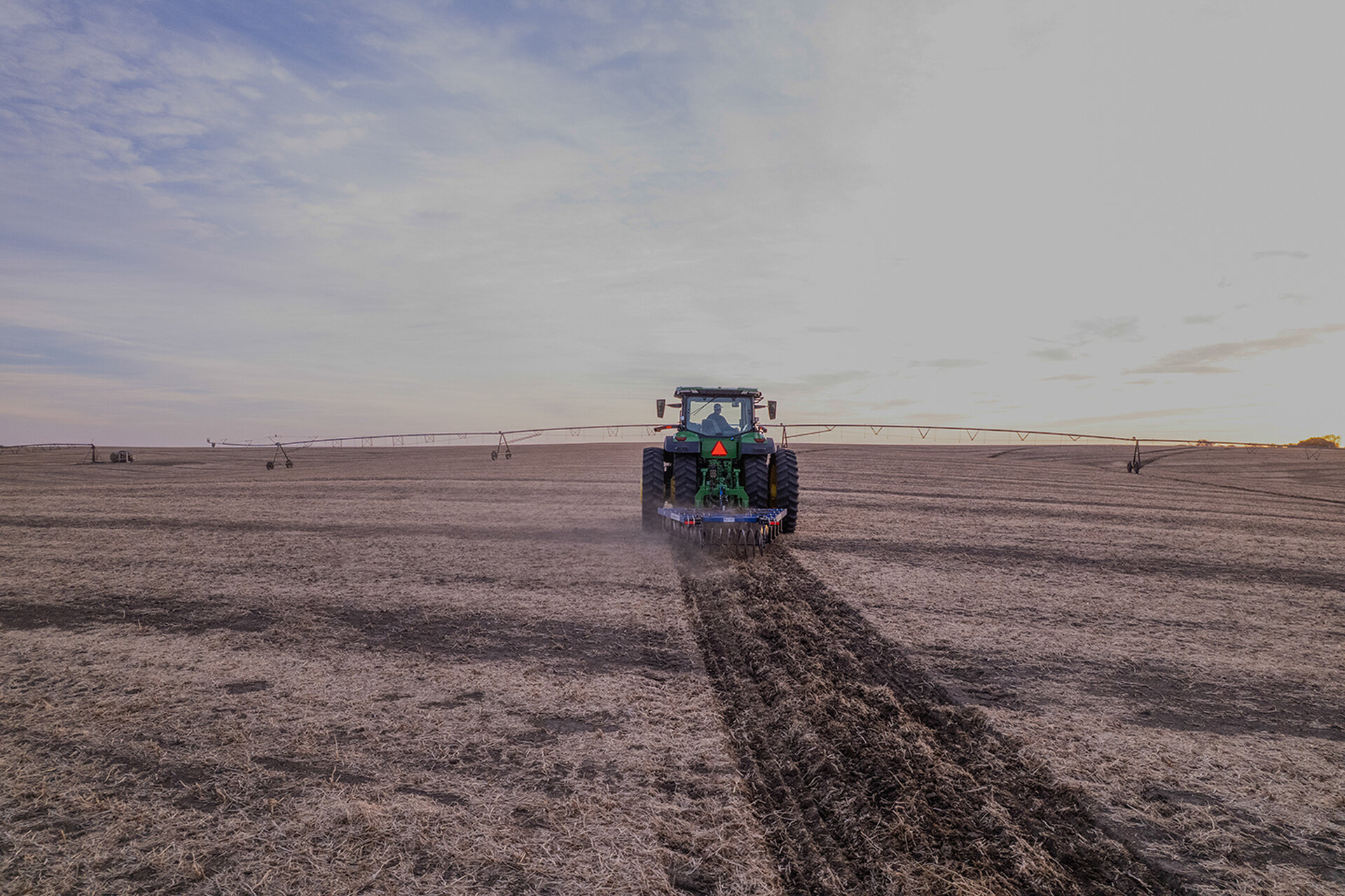

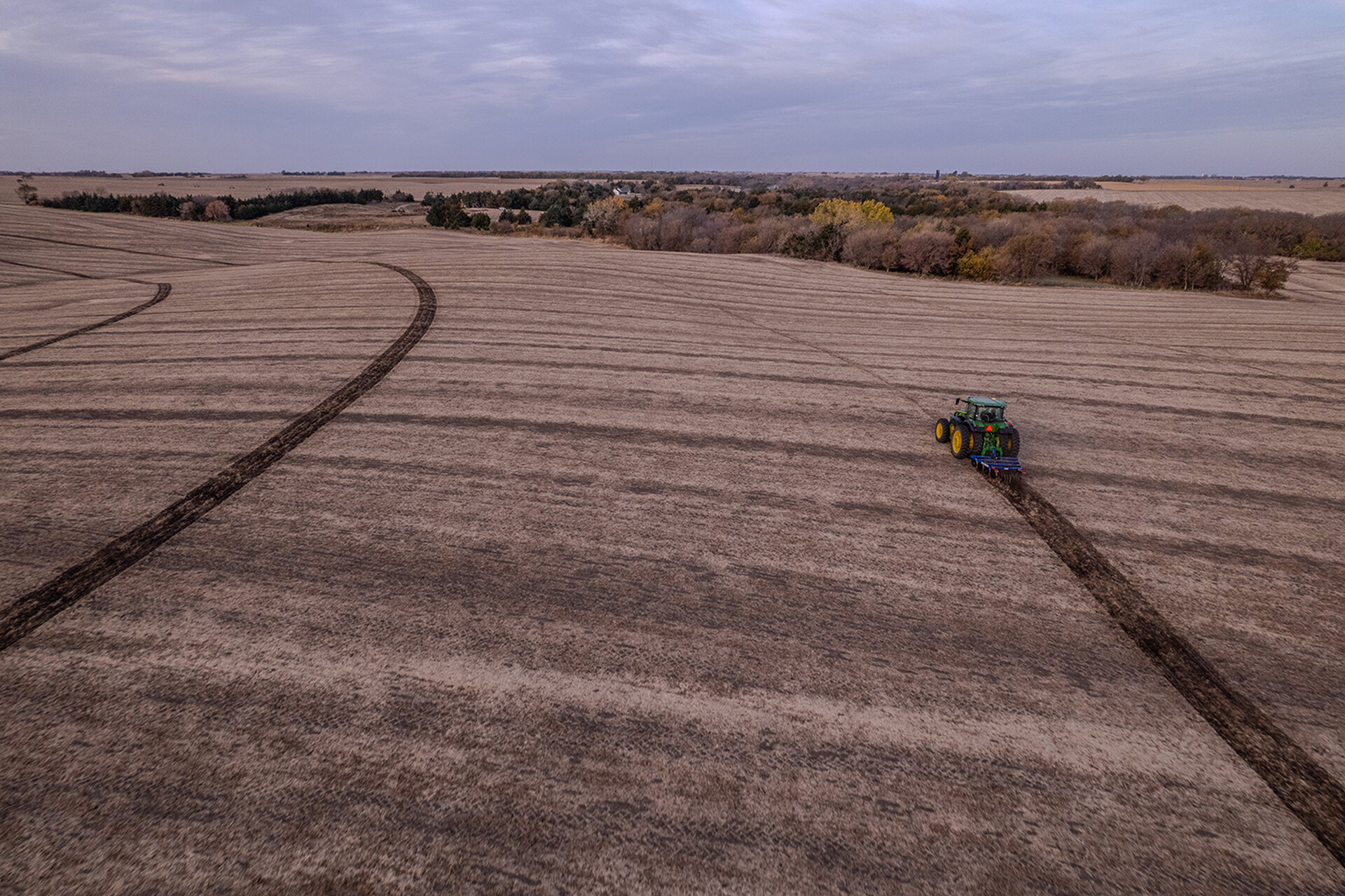

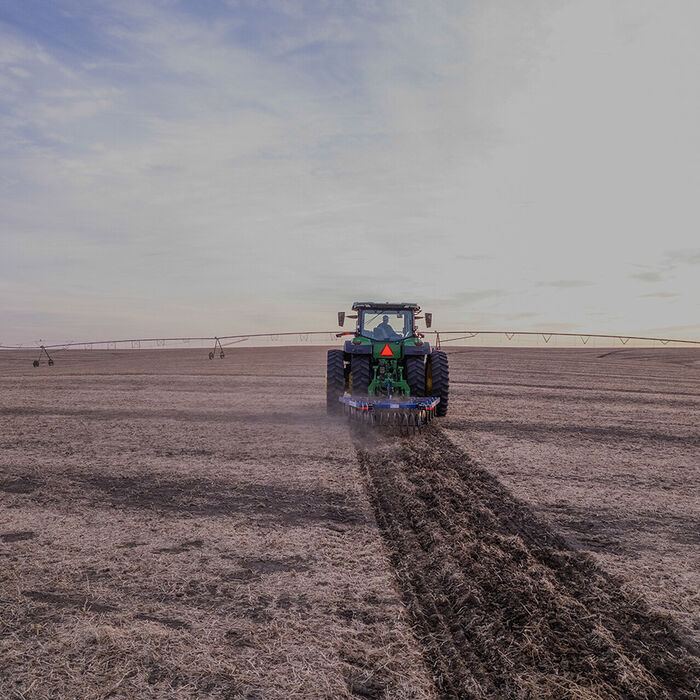

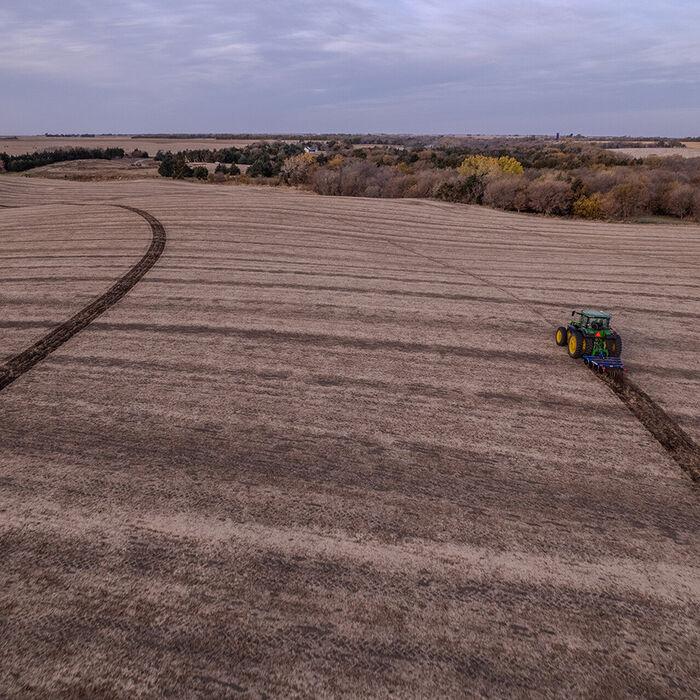

The Blu-Jet TrackMaster and TrenchMaster can fill pivot track and other ruts in the field. This track filler and trench filler features a heavy duty design for long term use.
The Blu-Jet TrackMaster and TrenchMaster can fill pivot track and other ruts in the field. This track filler and trench filler features a heavy duty design for long term use. TrackMaster II Pivot Irrigation Track Closer Tillage Tool The Blu-Jet TrackMaster and TrenchMaster can fill pivot track and other ruts in the field. This track filler and trench filler features a heavy duty design for long term use. TrackMaster II Pivot Irrigation Track Closer Rear View The Blu-Jet TrackMaster and TrenchMaster can fill pivot track and other ruts in the field. This track filler and trench filler features a heavy duty design for long term use. TrackMaster II Pivot Irrigation Track Closer In Field The Blu-Jet TrackMaster and TrenchMaster can fill pivot track and other ruts in the field. This track filler and trench filler features a heavy duty design for long term use. LevelPro Attachment on TrackMaster II Track Closer The Blu-Jet TrackMaster and TrenchMaster can fill pivot track and other ruts in the field. This track filler and trench filler features a heavy duty design for long term use. TrenchMaster Track Closer In Field Rear View The Blu-Jet TrackMaster and TrenchMaster can fill pivot track and other ruts in the field. This track filler and trench filler features a heavy duty design for long term use. TrenchMaster Drainage Line Track Closer The Blu-Jet TrackMaster and TrenchMaster can fill pivot track and other ruts in the field. This track filler and trench filler features a heavy duty design for long term use. PackerPro Option on TrackMaster II Track Closer The Blu-Jet TrackMaster and TrenchMaster can fill pivot track and other ruts in the field. This track filler and trench filler features a heavy duty design for long term use. Hydraulic Guide Cone and 3-Point Hitch on TrackMaster II

Jump to:

TrackMaster II TrenchMaster Literature

TrackMaster II

Frame and Blade Design on TrackMaster II Track Closer

Features

  • 3-bar frame features 4" x 6" tubing for durability and a CAT 2/3 three-point hitch for quick hookup.
    • 60" working width is ideal for closing and finishing center pivot irrigation ruts
  • 22" concave discs feature tear-drop cutouts known throughout the industry for reducing soil build up.
    • The V-pattern of the 6 concave discs provide superior track filling and optimize residue flow.
    • Mounted on 6-bolt hubs for added durability.
  • Choose from a manual-adjust or hydraulically-controlled guide cone to keep the implement on track with minimal input from the operator.
  • Frame and discs feature a powder-coated finish for a durable and long-lasting finish.
LevelPro Attachment on TrackMaster II Tillage Tool

Options

  • Leveling and finishing options include:
    • Rear-mounted LevelPro with large-diameter self-cleaning coil roller that leaves a smooth soil profile.
    • The PackerPro includes 2 additional inner concave discs with a firming rolling basket in the center of the unit which enhances track firming.
  • 4-bar conversion kit for the TrackMaster II extends the working width to 72" and adds an additional pair of concave discs.

TrenchMaster

Frame and Blade Design on TrenchMaster Track Closer

Features

  • 4-bar frame features 4" x 6" tubing for durability and a CAT 2/3 three-point hitch for quick hookup.
    • 90" working width is ideal for closing and finishing drainage tile trenches and ruts
  • 22" concave discs feature tear-drop cutouts known throughout the industry for reduced soil build up.
    • The V-pattern of the 8 concave discs provide superior track filling and optimizes residue flow.
    • Mounted on heavy-duty 6-bolt hubs for durability.
  • Frame and discs feature a powder-coated finish for a durable and long-lasting finish.
LevelPro Attachment on TrackMaster II Tillage Tool

Options

  • Choose from a manual-adjust or hydraulically-controlled guide cone to keep the implement on track with minimal input from the operator.
  • Leveling and finishing options include a rear-mounted LevelPro with large-diameter coil roller that leaves a smooth soil profile.
  • Additional disc gangs are available with 3, 2 or 1 pair of inner discs for additional tillage and leveling action.
